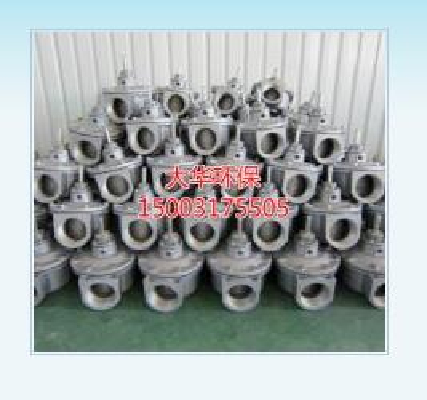

DMF-Z rectangular electromagnetic pulse valve

DMF-Z rectangular electromagnetic pulse valve

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: China Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2002-04-10
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  Dahua environmental engineering
  • Model Number:  8

DMF-Y submerged electromagnetic pulse valve diaphragm before and after the two chambers into the pulse valve, when switched on compressed air, compressed air flow through the holes into the gas chamber, after the chamber pressure at this time close to the diaphragm valve outlet, pulse valve is turned off. When the electrical signal pulse controller pulse valve armature moves the valve chamber to open the bleed hole, after rapid pressure chamber, the diaphragm movement, blowing compressed air through the outlet valve, pulse valve is open.
DMF-Y submerged pulse valve is submerged (also known as embedded valve) directly mounted on the air bag, with better pass-through effect of the injection, a small working air loss. Suitable for a wide range of air supply pressure of the occasion. Therefore, the pulse dust collector is widely used.
DMF-Y submerged pulse valve Technical Specifications: Working Pressure: 0 3-0 6Mpa Working medium: clean air voltage: Dc24v / Ac220v Current: 800mA / 60mA Environment: a temperature of 10 ℃ ~ 55 ℃ relative air temperature does not exceed 85 % diaphragm life: 100 million times or 2 to 3 years.

  • Place of Origin:  China
  • Brand Name:  Dahua environmental engineering
  • Model Number:  8
